Biomass Gasifier
Biomass gasifier is a device that converts biomass raw materials (such as wood, straw, rice husk, etc.) into combustible gas (synthesis gas) through a thermochemical process. This combustible gas can
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Question 1-Product Description
Biomass gasifier is a device that converts biomass raw materials (such as wood, straw, rice husk, etc.) into combustible gas (synthesis gas) through a thermochemical process. This combustible gas can be used for power generation, heating or as a chemical raw material.
Question 2-Product Parameter
| Model | Heat | Fuel consumption | Gas production | Reactor size | |
| BN-BGF-80 | 800kw/h | 300-1000kg/h | 600-2000m³/h | Φ1600mm | |
| BN-BGF-160 | 1600kw/h | 800-1500kg/h | 1600-3000m³/h | Φ2000mm | |
| BN-BGF-320 | 3200kw/h | 1200-2200kg/h | 2400-4400m³/h | Φ2200mm | |
| BN-BGF-480 | 4800kw/h | 1500-2500kg/h | 3000-5000m³/h | Φ2600mm | |
| BN-BGF-640 | 6400kw/h | 1600-2800kg/h | 3200-5600m³/h | Φ3000mm | |
| BN-BGF-800 | 8000kw/h | 1800-3100kg/h | 3600-6200m³/h | Φ3200mm | |
| BN-BGF-1200 | 12000kw/h | 2700-4600kg/h | 5400-9200m³/h | Φ3200mm | |
| BN-BGF-1600 | 16000kw/h | 3600-6200kg/h | 7200-12400m³/h | Φ3200mm | |
| Gas composition | CO：20-25% H2：8-15% CH4：2-4% CO2：2-4% N2：40-45% 02：1% | ||||
| Calorific value | 1100-1300 Kcal/m³ | ||||
| Note | Customizable large-scale production equipment: 20000 kw/h, 24000 kw/h, 32000 kw/h | ||||
Question 3-Product Display
Advantages of biomass gasifier
1. High efficiency and energy saving, high energy utilization rate
Our biomass gasifier adopts advanced gasification technology to efficiently convert biomass raw materials into combustible gas, with an energy conversion rate of more than 85%, far exceeding traditional combustion methods.
2. Strong adaptability and wide source of raw materials
Our biomass gasifier can process a variety of biomass raw materials, including wood chips, straw, rice husks, fruit shells, forestry waste, etc., with strong adaptability.
3. Intelligent control and easy operation
The gasifier is equipped with an intelligent control system that can monitor key parameters such as gasification temperature, gas composition, pressure, etc. in real time to achieve automatic operation.
4. Modular design, easy installation and maintenance
Our gasifier adopts modular design, compact structure, easy installation, and can be flexibly adjusted according to customer needs.

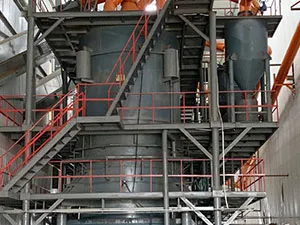

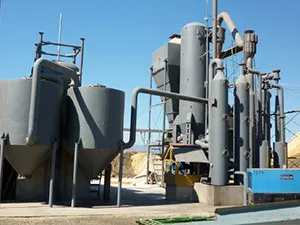

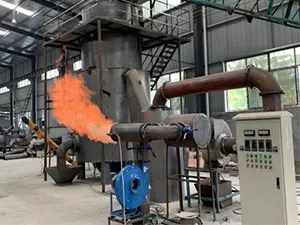

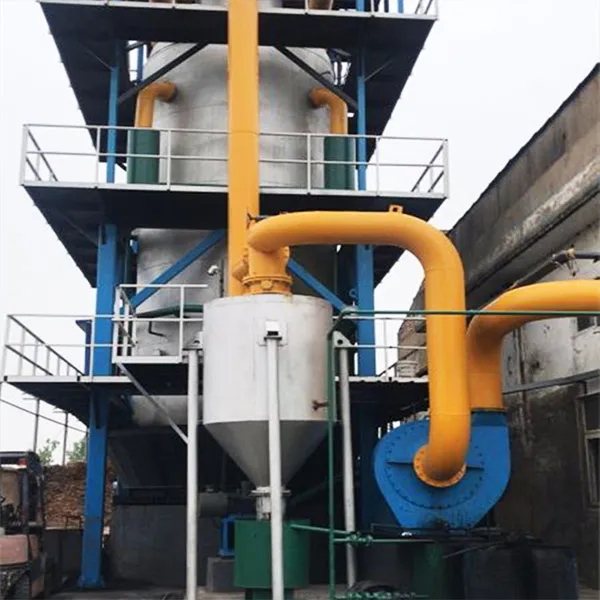

Biomass-Gasifier-details-1

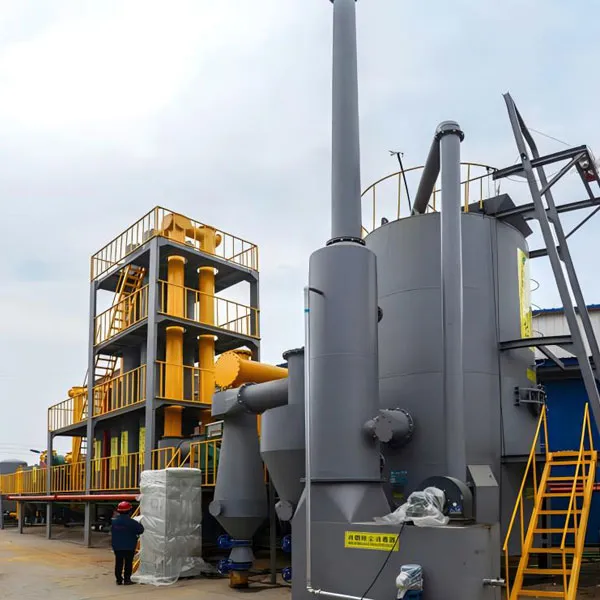

Biomass-Gasifier-details-2

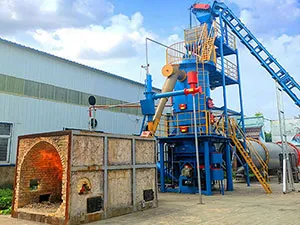

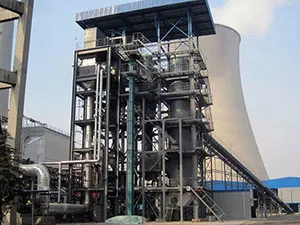

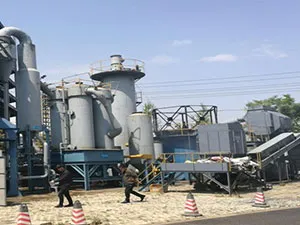

Question 4-Application
Question 5-FAQ
Q: What types of biomass gasifiers are there?
A: Biomass gasifiers are mainly divided into the following types:
●Fixed bed gasifier: simple structure, easy operation, suitable for small applications.
●Fluidized bed gasifier: high gasification efficiency, suitable for large applications.
●Entrained bed gasifier: high gasification temperature, suitable for processing a variety of biomass raw materials.
Question 6-Our service
